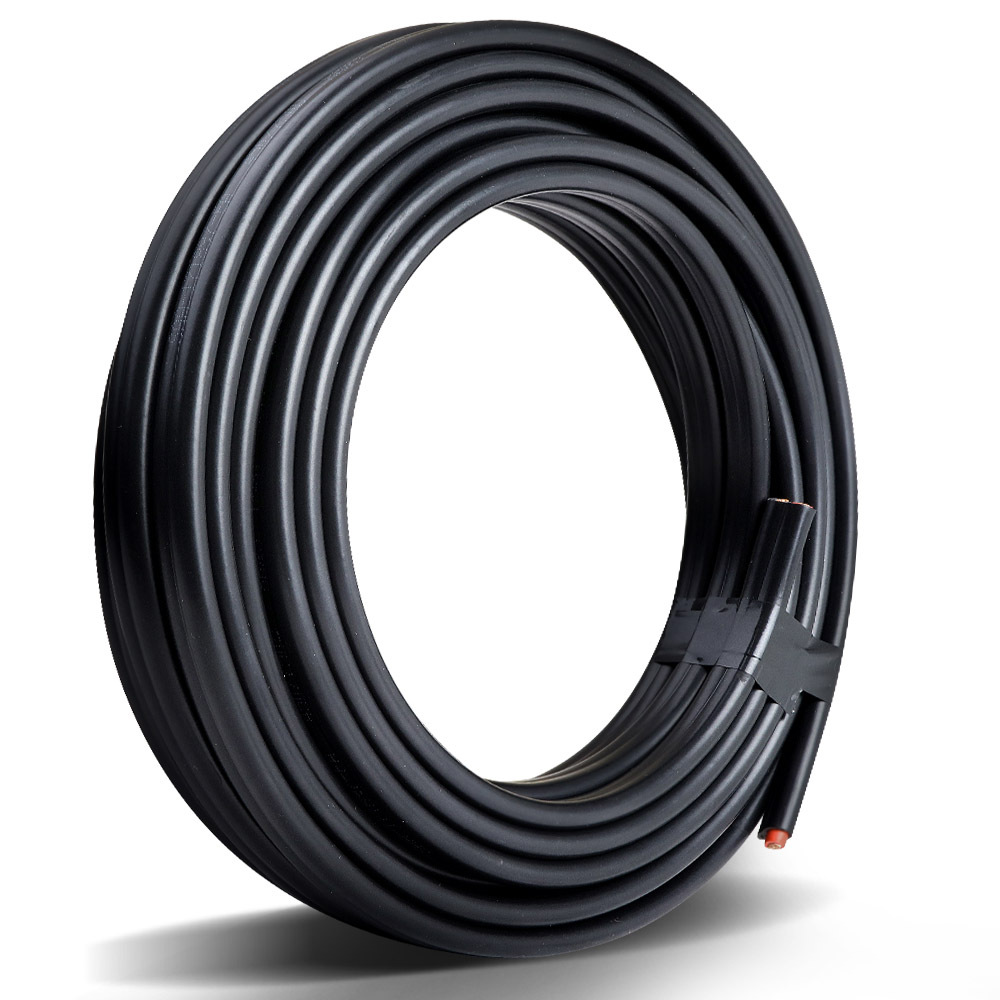

The 8B&S Twin Sheath Automotive Cable is engineered for superior performance, making it an ideal choice for various automotive applications. Featuring an oxygen-free copper core conductor, this cable provides excellent electrical conductivity, facilitating efficient power transmission while minimising energy loss. Its fireproof material prevents the cable from breaking or discolouring when exposed to high temperatures, offering enhanced safety. The BVR wire design is both flexible and durable, accommodating a wide range of installation processes with ease. With low eccentricity, the cable provides uniform insulation thickness, significantly reducing the risk of electrical faults. The reinforced PVC material delivers robust protection against abrasion, moisture, and chemicals, while its waterproof and flame-retardant properties makes the cable remain effective even in challenging environments. Additionally, this cable is SAA-certified, meeting stringent Australian safety standards, providing users with peace of mind in their installations.

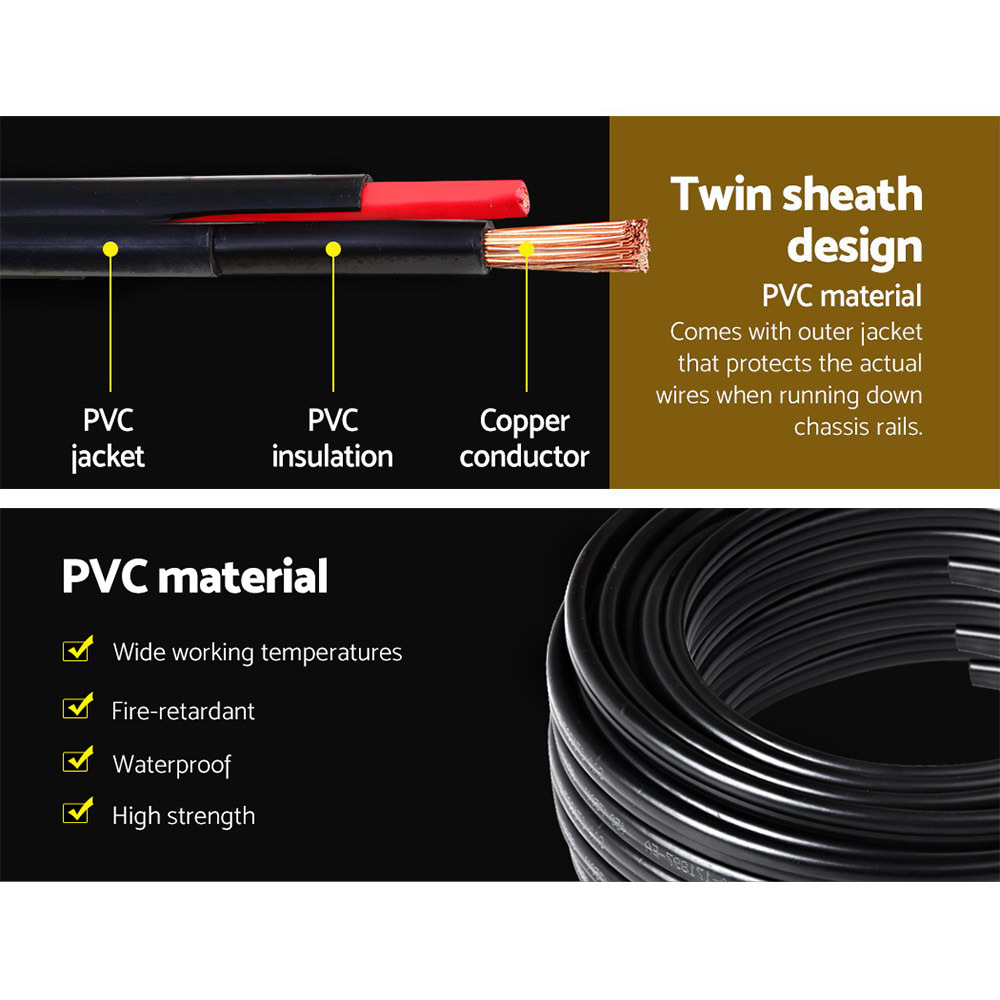

- 8B&S twin sheath automotive cable
- Oxygen-free copper core conductor, excellent electrical conductivity
- Provides efficient power transmission and minimising energy loss
- Fireproof material - cable will not break or turn white on burning
- BVR wire - flexible and durable, perfect for different installation processes
- Low eccentricity provides uniform insulation thickness reducing the risk of electrical faults
- Reinforced PVC material offers robust protection against abrasion, moisture, and chemicals
- Waterproof - protects the cable from water and oil
- Flame-retardant - resistant to fire and high heat
- Can withstand extreme temperature changes without losing any of its effective conductivity
- SAA-certified, meets stringent Australian safety standards, providing peace of mind
- Conductor: Oxygen-free plain copper wire to AS/NZ 1125
- Insulation: V90 PVC to AS/NZ 3808
- Sheath: 5V90 PVC to AS/NZ 3808
- Amp rating: 59
- No. of cores: 2
- Cable Length: 10m
- Strand no. diameter: 96/0.32mm
- Wire Gauge:9 AWG
- Nominal area: 7.2mm²
- Nominal O.D.: 7.1mm x 12.5mm
- Colour: Black sheathing
- Conductor resistance <2.38Ω/Km(20?)
- Dielectric strength(kV/sec AC):2.5/60
- Unaged acceptable tensile strength ≥ 12.5Mpa
- Unaged acceptable ultimate elongation ≥130%
- Assembly Required: No
- Number of Packages: 1
12 Month Limited Warranty
- 8B&S Twin Core Wire 10M 13mm SAA 2 Sheath Copper Cable Automotive 4X4 Car 12V
- 8B&S twin sheath automotive cable
- Oxygen-free copper core conductor, excellent electrical conductivity
- Provides efficient power transmission and minimising energy loss
- Fireproof material - cable will not break or turn white on burning
- BVR wire - flexible and durable, perfect for different installation processes
- Low eccentricity provides uniform insulation thickness reducing the risk of electrical faults
- Reinforced PVC material offers robust protection against abrasion, moisture, and chemicals
- Waterproof - protects the cable from water and oil
- Flame-retardant - resistant to fire and high heat
- Can withstand extreme temperature changes without losing any of its effective conductivity
- SAA-certified, meets stringent Australian safety standards, providing peace of mind
- Conductor: Oxygen-free plain copper wire to AS/NZ 1125
- Insulation: V90 PVC to AS/NZ 3808
- Sheath: 5V90 PVC to AS/NZ 3808
- Amp rating: 59
- No. of cores: 2
- Cable Length: 10m
- Strand no. diameter: 96/0.32mm
- Wire Gauge:9 AWG
- Nominal area: 7.2mm²
- Nominal O.D.: 7.1mm x 12.5mm
- Colour: Black sheathing
- Conductor resistance <2.38Ω/Km(20?)
- Dielectric strength(kV/sec AC):2.5/60
- Unaged acceptable tensile strength ≥ 12.5Mpa
- Unaged acceptable ultimate elongation ≥130%
- Assembly Required: No
- Number of Packages: 1
SKU | AP-TWIN-CABLE-8BS-10 |
Colour | Black |
Product Weight | 2.3000kg |
Shipping Width | 0.070m |
Shipping Height | 0.040m |
Shipping Length | 0.070m |
Shipping Cubic | 0.000200000m3 |
Type | Twin Core Wire |
